SBS format 2D barcoded storage tubes & racks
Maple's 2D Barcoded Storage Tubes
can simplify sample identification and storage most conveniently in your lab.
Each tube is permanently laser-etched with 2D barcodes that are universal and unique for each tubes and racks.
SBS format 2D barcoded storage tubes & racks
- 재질 : -196°C (-320.8°F)까지 내한성을 보유한 Medical grade Polypropylene
- 나사홈이 본체 안쪽으로 새겨져 있어서 뚜껑을 안으로 잠글 수 있는 제품 (Screw Cap Type)과, 엘라스토머 (TPE)로 만드는 고무형 마개 (TPE Plug-in Cap) 제품, 두 타입으로 제작.
- Screw Cap과 TPE Plug-in Cap이 한 튜브에 호환됨.
- DNA&RNA 분해요소 없음, 비발열성.
- 여러 사이즈로 제작: 0.5mL, 0.75mL, 1.1mL, 1.4mL
- 2D 바코드가 영구적으로 레이저 마킹 되어있어 지워지지 않음 (Datamatrix 포맷)
- 8x12 포맷으로 제작되어 8, 12, 96 멀티채널 피펫터 호환 가능
- ISO 9001/14001 certified

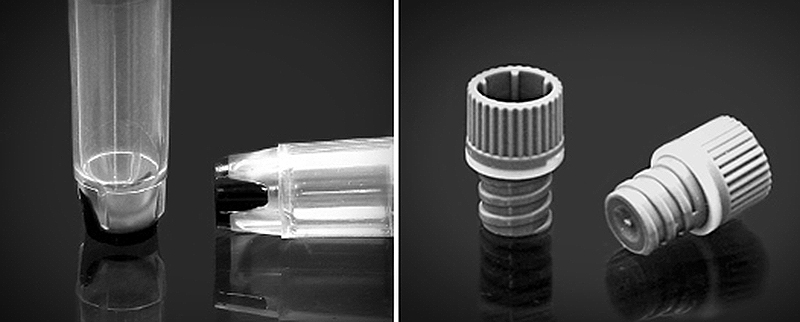

Dual Injection
- 바코드 부분이 튜브와 이중사출로 생산되어 바코드 부분이 튜브에서 분리될 위험이 없이 영구적으로 보관 가능.
- 오링 부분이 뚜껑과 이중사출로 생산되어 이중교차 오염이나 누수 위험이 없음.
DNase, RNase, Endotoxin (Pyrogen) Free
- 모든 튜브와 랙은 클린룸에서 생산되기 때문에, DNA & RNA 분해효소, 내독소 및 발열물질이 검출되지 않음.
Ideal for Cryogenic Storage
- -196°C (스크류캡 사용시)까지 견디는 수입산 Medical Grade Polypropylene을 사용하여, 냉동 보관 및 멸균 가능함.

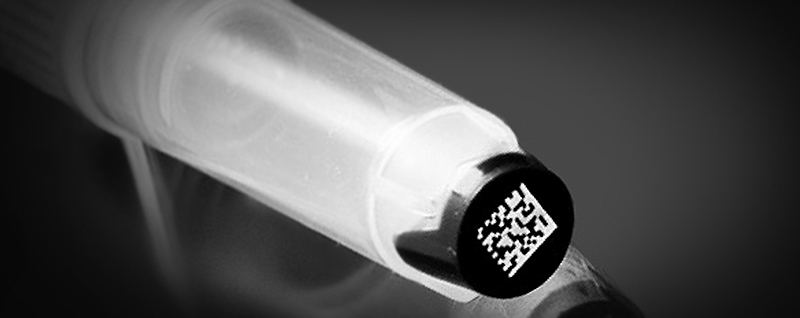

High Quality Barcodes
- 메이플의 2D와 1D 바코드는 극저온 (-196°C, -320.8°F) 에서도 판독이 용이함.
Twist Lock & Lid Lock
- 모든 랙은 TWIST 방식의 잠금 장치와 랙 뚜껑 잠금 장치가 있음. TWIST 잠금 장치는 튜브의 캡을 여닫을 때 튜브가 제자리에 고정되어 있도록 하여 한 손 작업을 가능하게 함. 랙 뚜껑 잠금 장치는 뚜껑이 랙 본체에 끼워져 잠길 수 있도록 하여, 랙을 뒤집어도 랙 내의 튜브가 쏟아지지 않음.
100% Quality Check
- 메이플에서 생산되는 모든 튜브와 랙은 까다로운 검수 과정을 거쳐 모든 바코드가 각각 고유의 바코드 번호로 레이저 조사 되었는지, 스캔이 가능한지 출고전에 100% 품질관리 됨.
Tube Overview Table
| Tube Type |
0.5mL |
0.75mL |
0.75mL
(Plug-in only) |
1.1mL |
1.4mL |
| |
 |
 |
 |
 |
 |
| Max Working Vol. (SC) (mL) |
0.3 |
0.54 |
N/A |
0.86 |
1.1 |
| Max Working Vol. (TPE) (mL) |
0.42 |
0.65 |
0.75 |
0.96 |
1.2 |
| Tube Height (mm) |
20 |
27 |
33.5 |
36.5 |
44 |
| Tube Height with TPE Cap (mm) |
21 |
28 |
34.5 |
37.5 |
45 |
| Tube Height with Screw Cap (mm) |
27 |
34 |
N/A |
43.5 |
51 |
| Inner Diameter (mm) |
6.8 |
6.8 |
6.8 |
6.8 |
6.8 |
| Outer Diameter (mm) |
8.4 |
8.4 |
8.4 |
8.4 |
8.4 |
| Centre To Centre (mm) |
9.0 |
9.0 |
9.0 |
9.0 |
9.0 |
| Min Temperature (°C) |
-196 |
-196 |
-196 |
-196 |
-196 |
| 2D Barcode |
Yes |
Yes |
Yes |
Yes |
Yes |
| 2D Barcode Info |
White on black, 3mm X 3mm, 2 alpha and 8 numeric
Custom prefix available, black on white available |
| Capping Option |
Precapped with Screw Cap or TPE Plug-in Cap or No Cap |
| Sterilization Option |
Sterilized with Gamma Ray or Non-sterilized |
| Rack Type Option |
Twist Lock and Lid Lock
2D Orientation Barcode
1D Barcode with human readable code |
| Rack Material |
PP |
0.5mL
Specification
| Working Vol. (SC/TPE) |
0.3mL / 0.42mL |
| Tube Height |
20mm |
| Tube Height with TPE Cap |
21mm |
| Tube Height with Screw Cap |
27mm |
| Inner Diameter |
6.8mm |
| Outer Diameter |
8.4mm |

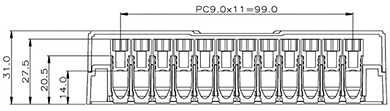

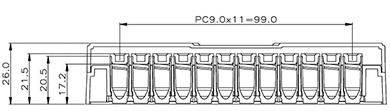

| Rack Height with Lid (TPE) |
26mm |
| Rack Height with Lid (SC) |
31mm |
| Temperature range |
Endures down to -196°C |
Cat No : BST-05-RPC-NS / For TPE cap use
Cat No : BST-05-RSC-NS / For Screw cap use
Tube Ordering Information
| Cat. No. |
Description |
Type |
Sterilization |
| BST-05-B-NS |
0.5mL SBS Format 2D Barcoded Storage Tube, No cap |
Bulk packed |
N |
| BST-05-BSC-NS |
0.5mL SBS Format 2D Barcoded Storage Tube with Screw Cap |
Bulk packed |
N |
| BST-05-R-NS |
0.5mL SBS Format 2D Barcoded Storage Tube, No cap |
Racked |
N |
| BST-05-RSC-NS |
0.5mL SBS Format 2D Barcoded Storage Tube with Screw Cap |
Racked |
N |
| BST-05-RPC-NS |
0.5mL SBS Format 2D Barcoded Storage Tube with TPE Plug-in Cap |
Racked |
N |
| BST-05-B-S |
0.5mL SBS Format 2D Barcoded Storage Tube, No cap |
Bulk packed |
Y |
| BST-05-BSC-S |
0.5mL SBS Format 2D Barcoded Storage Tube with Screw Cap |
Bulk packed |
Y |
| BST-05-R-S |
0.5mL SBS Format 2D Barcoded Storage Tube, No cap |
Racked |
Y |
| BST-05-RSC-S |
0.5mL SBS Format 2D Barcoded Storage Tube with Screw Cap |
Racked |
Y |
| BST-05-RPC-S |
0.5mL SBS Format 2D Barcoded Storage Tube with TPE Plug-in Cap |
Racked |
Y |
Rack Ordering Information
| Cat. No. |
Description |
Unit |
Sterilization |
| BSTR-05-SC |
Rack for 0.5mL tube with Screw Cap |
10/pk, 6pk/cs |
N |
| BSTR-05-PC |
Rack for 0.5mL tube with TPE Plug-in Cap |
10/pk, 6pk/cs |
N |
0.75mL
Specification
| Working Vol. (SC/TPE) |
0.54mL / 0.65mL |
| Tube Height |
27mm |
| Tube Height with TPE Cap |
28mm |
| Tube Height with Screw Cap |
34mm |
| Inner Diameter |
6.8mm |
| Outer Diameter |
8.4mm |

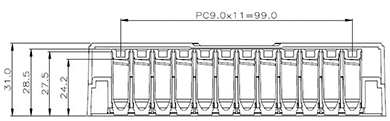

| Rack Height with Lid (TPE) |
31mm |

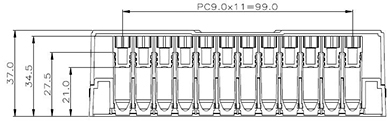

| Rack Height with Lid (SC) |
37mm |
| Temperature range |
Endures up down to -196°C |
Cat No : BST-75-RPC-NS / For TPE cap use
Cat No : BST-75-RSC-NS / For Screw cap use
Tube Ordering Information
| Cat. No. |
Description |
Type |
Sterilization |
| BST-75-B-NS |
0.75mL SBS Format 2D Barcoded Storage Tube, No cap |
Bulk packed |
N |
| BST-75-BSC-NS |
0.75mL SBS Format 2D Barcoded Storage Tube with Screw Cap |
Bulk packed |
N |
| BST-75-R-NS |
0.75mL SBS Format 2D Barcoded Storage Tube, No cap |
Racked |
N |
| BST-75-RSC-NS |
0.75mL SBS Format 2D Barcoded Storage Tube with Screw Cap |
Racked |
N |
| BST-75-RPC-NS |
0.75mL SBS Format 2D Barcoded Storage Tube with TPE Plug-in Cap |
Racked |
N |
| BST-75-B-S |
0.75mL SBS Format 2D Barcoded Storage Tube, No cap |
Bulk packed |
Y |
| BST-75-BSC-S |
0.75mL SBS Format 2D Barcoded Storage Tube with Screw Cap |
Bulk packed |
Y |
| BST-75-R-S |
0.75mL SBS Format 2D Barcoded Storage Tube, No cap |
Racked |
Y |
| BST-75-RSC-S |
0.75mL SBS Format 2D Barcoded Storage Tube with Screw Cap |
Racked |
Y |
| BST-75-RPC-S |
0.75mL SBS Format 2D Barcoded Storage Tube with TPE Plug-in Cap |
Racked |
Y |
Rack Ordering Information
| Cat. No. |
Description |
Unit |
Sterilization |
| BSTR-75-SC |
Rack for 0.75mL tube with Screw Cap |
10/pk, 6pk/cs |
N |
| BSTR-75-PC |
Rack for 0.75mL tube with TPE Plug-in Cap |
10/pk, 6pk/cs |
N |
0.75mL (Plug-in only)
Specification
| Working Vol. (TPE) |
0.75mL |
| Tube Height |
33.5mm |
| Tube Height with TPE Cap |
34.5mm |
| Inner Diameter |
6.8mm |
| Outer Diameter |
8.4mm |

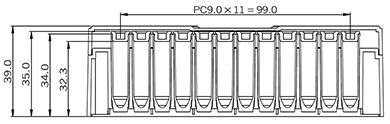

| Rack Height with Lid (TPE) |
39mm |
| Temperature range |
Endures down to -196°C |
Cat No : BST-75P-RPC-NS For TPE cap use
Tube Ordering Information
| Cat. No. |
Description |
Type |
Sterilization |
| BST-75P-B-NS |
0.75mL SBS Format 2D Barcoded Storage Tube, No cap |
Bulk packed |
N |
| BST-75P-R-NS |
0.75mL SBS Format 2D Barcoded Storage Tube, No cap |
Racked |
N |
| BST-75P-RPC-NS |
0.75mL SBS Format 2D Barcoded Storage Tube with TPE Plug-in Cap |
Racked |
N |
| BST-75P-B-S |
0.75mL SBS Format 2D Barcoded Storage Tube, No cap |
Bulk packed |
Y |
| BST-75P-R-S |
0.75mL SBS Format 2D Barcoded Storage Tube, No cap |
Racked |
Y |
| BST-75P-RPC-S |
0.75mL SBS Format 2D Barcoded Storage Tube with TPE Plug-in Cap |
Racked |
Y |
Rack Ordering Information
| Cat. No. |
Description |
Unit |
Sterilization |
| BSTR-75P-PC |
Rack for 0.75mL(Plug-in) tube with TPE Plug-in Cap |
10/pk, 6pk/cs |
N |
1.1mL
Specification
| Working Vol. (SC/TPE) |
0.86mL / 0.97mL |
| Tube Height |
36.5mm |
| Tube Height with TPE Cap |
37.5mm |
| Tube Height with Screw Cap |
43.5mm |
| Inner Diameter |
6.8mm |
| Outer Diameter |
8.4mm |

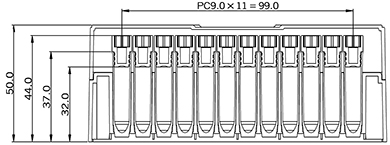

| Rack Height with Lid (TPE) |
44mm |
| Rack Height with Lid (SC) |
50mm |
| Temperature range |
Endures down to -196°C |
Cat No : BST-11-RPC-NS / For TPE cap use
Cat No : BST-11-RSC-NS / For Screw cap use
Tube Ordering Information
| Cat. No. |
Description |
Type |
Sterilization |
| BST-11-B-NS |
1.1mL SBS Format 2D Barcoded Storage Tube, No cap |
Bulk packed |
N |
| BST-11-BSC-NS |
1.1mL SBS Format 2D Barcoded Storage Tube with Screw Cap |
Bulk packed |
N |
| BST-11-R-NS |
1.1mL SBS Format 2D Barcoded Storage Tube, No cap |
Racked |
N |
| BST-11-RSC-NS |
1.1mL SBS Format 2D Barcoded Storage Tube with Screw Cap |
Racked |
N |
| BST-11-RPC-NS |
1.1mL SBS Format 2D Barcoded Storage Tube with TPE Plug-in Cap |
Racked |
N |
| BST-11-B-S |
1.1mL SBS Format 2D Barcoded Storage Tube, No cap |
Bulk packed |
Y |
| BST-11-BSC-S |
1.1mL SBS Format 2D Barcoded Storage Tube with Screw Cap |
Bulk packed |
Y |
| BST-11-R-S |
1.1mL SBS Format 2D Barcoded Storage Tube, No cap |
Racked |
Y |
| BST-11-RSC-S |
1.1mL SBS Format 2D Barcoded Storage Tube with Screw Cap |
Racked |
Y |
| BST-11-RPC-S |
1.1mL SBS Format 2D Barcoded Storage Tube with TPE Plug-in Cap |
Racked |
Y |
Rack Ordering Information
| Cat. No. |
Description |
Unit |
Sterilization |
| BSTR-11-SC |
Rack for 1.1mL tube with Screw Cap |
10/pk, 6pk/cs |
N |
| BSTR-11-PC |
Rack for 1.1mL tube with TPE Plug-in Cap |
10/pk, 6pk/cs |
N |
1.4mL
Specification
| Working Vol. (SC/TPE) |
1.1mL / 1.2mL |
| Tube Height |
44mm |
| Tube Height with TPE Cap |
45mm |
| Tube Height with Screw Cap |
51mm |
| Inner Diameter |
6.8mm |
| Outer Diameter |
8.4mm |

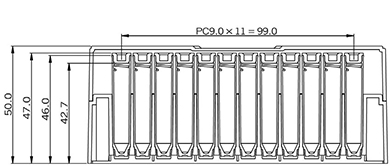

| Rack Height with Lid (TPE) |
50mm |

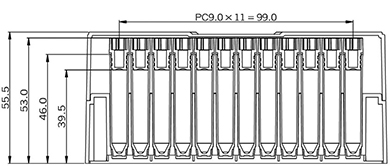

| Rack Height with Lid (SC) |
55.5mm |
| Temperature range |
Endures down to -196°C |
Cat No : BST-14-RPC-NS / For TPE cap use
Cat No : BST-14-RSC-NS / For Screw cap use
Tube Ordering Information
| Cat. No. |
Description |
Type |
Sterilization |
| BST-14-B-NS |
1.4mL SBS Format 2D Barcoded Storage Tube, No cap |
Bulk packed |
N |
| BST-14-BSC-NS |
1.4mL SBS Format 2D Barcoded Storage Tube with Screw Cap |
Bulk packed |
N |
| BST-14-R-NS |
1.4mL SBS Format 2D Barcoded Storage Tube, No cap |
Racked |
N |
| BST-14-RSC-NS |
1.4mL SBS Format 2D Barcoded Storage Tube with Screw Cap |
Racked |
N |
| BST-14-RPC-NS |
1.4mL SBS Format 2D Barcoded Storage Tube with TPE Plug-in Cap |
Racked |
N |
| BST-14-B-S |
1.4mL SBS Format 2D Barcoded Storage Tube, No cap |
Bulk packed |
Y |
| BST-14-BSC-S |
1.4mL SBS Format 2D Barcoded Storage Tube with Screw Cap |
Bulk packed |
Y |
| BST-14-R-S |
1.4mL SBS Format 2D Barcoded Storage Tube, No cap |
Racked |
Y |
| BST-14-RSC-S |
1.4mL SBS Format 2D Barcoded Storage Tube with Screw Cap |
Racked |
Y |
| BST-14-RPC-S |
1.4mL SBS Format 2D Barcoded Storage Tube with TPE Plug-in Cap |
Racked |
Y |
Rack Ordering Information
| Cat. No. |
Description |
Unit |
Sterilization |
| BSTR-14-SC |
Rack for 1.4mL tube with Screw Cap |
10/pk, 6pk/cs |
N |
| BSTR-14-PC |
Rack for 1.4mL tube with TPE Plug-in Cap |
10/pk, 6pk/cs |
N |
Accessories
2D Barcoded Storage Tube Rack
- 메이플의 2D 바코드 랙에는 각 튜브를 쉽게 식별 하기 위해 알파벳 (A~H)과 숫자 (1~12)가 새겨져 있음.
- 랙을 사용하거나 보관, 또는 옮기는 동안 튜브와 그 내용물이 쏟아지지 않도록 랙에 장금장치가 있음.
- 1D 바코드와 2D 바코드가 레이저로 새겨져 있고 화학 내구성이 뛰어나 화학물질과 접촉해도 바코드가 지워지지 않음.
- 모든 바코드는 공장에서 최종 출고 전 100% 판독 테스트를 거침.
- 랙 뚜껑은 완전히 닫거나, 얹어 놓거나, 완전히 분리하는 세 가지 형태로 사용 가능함.
- 보관 상태일 때에는 랙 뚜껑을 완전히 닫아서 사용하고, 실험 중에는 뚜껑을 랙에 얹어서 사용 가능하며, 자동화 장비에 넣을 때는 랙 뚜껑을 완전히 분리하여 사용할 수 있음.
- 8x12 포맷으로 제작되어 8, 12, 96 멀티 피펫터와 호환 가능함.
Tube Ordering Information
| Cat. No. |
Description |
Unit |
| BSTR-05-SC |
Rack for 0.5mL 2D Barcoded Storage tube with Screw Cap |
10/pk, 6pk/cs |
| BSTR-05-PC |
Rack for 0.5mL 2D Barcoded Storage tube with TPE Plug-in Cap |
10/pk, 6pk/cs |
| BSTR-75-SC |
Rack for 0.75mL 2D Barcoded Storage tube with Screw Cap |
10/pk, 6pk/cs |
| BSTR-75-PC |
Rack for 0.75mL 2D Barcoded Storage tube with TPE Plug-in Cap |
10/pk, 6pk/cs |
| BSTR-75P-PC |
Rack for TPE Plug-in Cap Only 0.75mL tube with TPE Plug-in Cap |
10/pk, 6pk/cs |
| BSTR-11-SC |
Rack for 1.1mL 2D Barcoded Storage tube with Screw Cap |
10/pk, 6pk/cs |
| BSTR-11-PC |
Rack for 1.1mL 2D Barcoded Storage tube with TPE Plug-in Cap |
10/pk, 6pk/cs |
| BSTR-14-SC |
Rack for 1.4mL 2D Barcoded Storage tube with Screw Cap |
10/pk, 6pk/cs |
| BSTR-14-PC |
Rack for 1.4mL 2D Barcoded Storage tube with TPE Plug-in Cap |
10/pk, 6pk/cs |
TPE Plug-in Cap
- 회색 스크류캡은 튜브에 엘라스토머가 이중사출로 생산되어 영구적으로 부착되어 있음.
- 오링의 분실혹은 내용물 누수의 위험이 없이 영구적으로 보관 가능.
- 스크류캡은 메이플의 모든 사이즈의 2D 바코드 튜브와 호환됨.
- -196°C (-320.8°F)까지 견디는 Medical grade Polypropylene로 생산되며, 121°C 멸균 가능함.
Ordering Information
| Cat. No. |
Description |
Unit |
| BST-PC-NS |
Plug-in type TPE Cap Mat |
10mat/pk, 6pk/cs |
Screw Cap
Screw Caps are available in Gray color with elastomer permanently attached to the tube with Dual Injection method. This prevents the danger of losing the O-ring and possible leakage that could result from it. The Screw Caps are compatible between every size of Maple's 2D Barcoded Storage Tubes. Manufactured with Medical grade Polypropylene, autoclavable.
Ordering Information
| Cat. No. |
Description |
Unit |
| BST-SC-NS |
Screw Cap, Bulk packed |
1000/pk, 5pk/cs |
PRODUCT > 제품소개01
